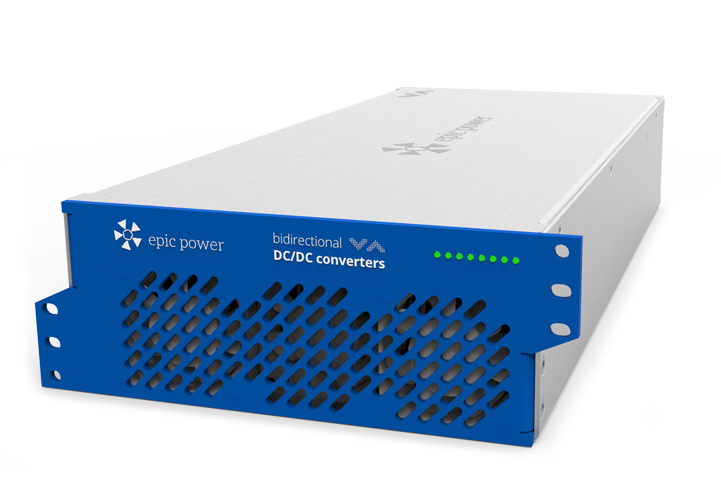

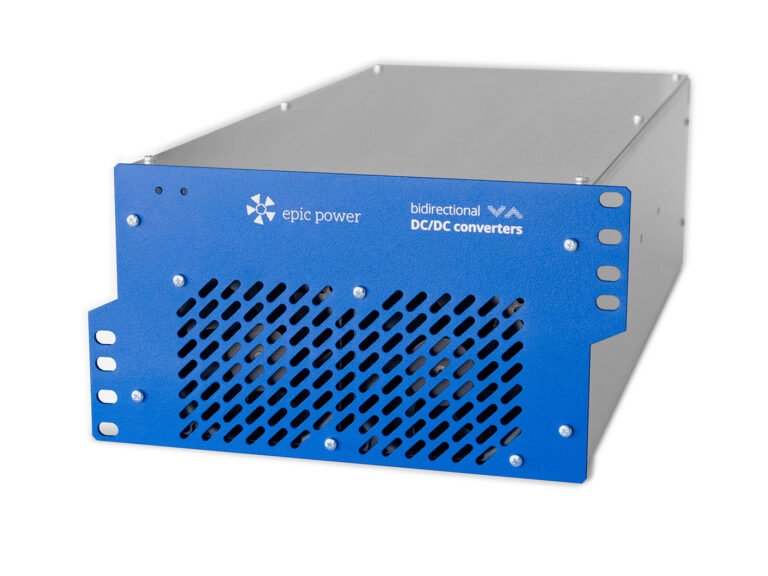

Epic Power Converters » Products » Bidirectional DC/DC Converters Bidirectional DC/DC Converters Bidirectional high-efficient DC/DC power converters. With a wide range of voltage levels in both sides, the EPCs are capable of managing power in both directions. Features DC DC converter Why a bidirectional DC/DC Converter? EPC systems have shaped the new generation of bidirectional DC/DC Converters. EPCs (Epic Power Converters) are suitable for a large number of applications ranging from industrial ones to those in the field of renewable energies. Bidirectionality Managing energy flow in both directions Ultra-high efficiency achieved with silicon carbide transistor technology. Scalability Scalable with easy paralellization. Galvanic isolation of the entire structure Maintains the DC link voltage in the absence of main supply. Soft pre-charge of the DC link Suitable to switch ON and OFF the drive as many times as required in order to save energy and life expectancy of the inverter. Automatic change of power flow to stabilize either input or output voltage without stopping voltage regulation. CAN communication available to implement voltage or current control and transmit relevant measurements of operation parameters (voltage, power, current, temperatures, etc.). Customized versions available upon request. Request here As a typical application the low side voltage can be connected to batteries or ultracapacitors to feed any drive (VVVF) directly through the DC link. This allows the system to continue in operation in case of lack of mains supply. It also allows for off-grid applications where there is no three-phase mains available or, for example, in automatic warehouses when the platforms are moving off-grid. Product range Isolated bidirectional DC/DC converters Isolation implies a galvanic separation between the ports, which means there is no direct current path between them. High side Voltage [Vdc]Low side Voltage [Vdc]Nominal power [kW] EPC 18k 870i650 – 950 V (optional from 0 – 950)0 to 90 V18 kW 800V | 70V | isolated | bidirectionalHigh side Voltage [Vdc]: 650 – 950 V (optional from 0 – 950)High side current (max): 23 ALow side Voltage [Vdc]: 0 to 90 VLow side current (max): 200 ASize: 3U Half-rack 19″ | 214 x 132 x 463mmWeight [kg]: 9.75 kg Datasheet Related downloads Contact sales EPC 3k5 648i510 to 848 V38 to 59 V (optional from 0 V)3.5 kW 600V | 48V | isolated | bidirectionalPeak power [kW]: 4.2 kWHigh side Voltage [Vdc]: 510 to 848 VHigh side current (max): 6 A (7.5 A)Low side Voltage [Vdc]: 38 to 59 V (optional from 0 V)Low side current (max): 75 A (115 A)Size: Size 1 ?Weight [kg]: 6.05 kg Datasheet Related downloads 3D file Contact sales EPC 5k5 648i510 to 848 V38 to 59 V (optional from 0 V)5.5 kW 600V | 48V | isolated | bidirectionalPeak power [kW]: 6.5 kWHigh side Voltage [Vdc]: 510 to 848 VHigh side current (max): 10 A (12 A)Low side Voltage [Vdc]: 38 to 59 V (optional from 0 V)Low side current (max): 115 A (180 A)Size: Size 2 ?Weight [kg]: 8.95 kg Datasheet Related downloads 3D file Contact sales EPC 2k2 624i510 to 848 V19 to 30 V (optional from 0 V)2.2 kW 600V | 24V | isolated | bidirectionalPeak power [kW]: 2.6 kWHigh side Voltage [Vdc]: 510 to 848 VHigh side current (max): 4 A (5 A)Low side Voltage [Vdc]: 19 to 30 V (optional from 0 V)Low side current (max): 92 A (130 A)Size: Size 1 ?Weight [kg]: 6.15 kg Datasheet Related downloads 3D file Contact sales EPC 2k2 348i280 to 450 V38 to 59 V (optional from 0 V)2.2 kW 300V | 48V | isolated | bidirectionalPeak power [kW]: 2.6 kWHigh side Voltage [Vdc]: 280 to 450 VHigh side current (max): 7 A (9.3 A)Low side Voltage [Vdc]: 38 to 59 V (optional from 0 V)Low side current (max): 50 A (70 A)Size: Size 1 ?Weight [kg]: 6.00 kg Datasheet Related downloads 3D file Contact sales EPC 2k2 324i280 to 450 V19 to 30 V (optional from 0 V)2.2 kW 300V | 24V | isolated | bidirectionalPeak power [kW]: 2.6 kWHigh side Voltage [Vdc]: 280 to 450 VHigh side current (max): 7 A (9.3 A)Low side Voltage [Vdc]: 19 to 30 V (optional from 0 V)Low side current (max): 92 A (130 A)Size: Size 1 ?Weight [kg]: 6.05 kg Datasheet Related downloads 3D file Contact sales EPC 4k8 6125i430 to 830 V110 to 165 V (optional from 0 V)4.8 kW 600V | 125V | isolated | bidirectionalPeak power [kW]: 4.8 kWHigh side Voltage [Vdc]: 430 to 830 VHigh side current (max): 9 ALow side Voltage [Vdc]: 110 to 165 V (optional from 0 V)Low side current (max): 45 ASize: Size 1 ?Weight [kg]: 6.70 kg Datasheet Related downloads 3D file Contact sales EPC 7k 670i510 to 848 V40 to 100 V (optional from 0 V)7.0 kW 600V | 70V | isolated | bidirectionalPeak power [kW]: 7.5 kWHigh side Voltage [Vdc]: 510 to 848 VHigh side current (max): 11.6 A (12.5 A)Low side Voltage [Vdc]: 40 to 100 V (optional from 0 V)Low side current (max): 100 A (108 A)Size: Size 2 ?Weight [kg]: 7.95 kg Datasheet Related downloads 3D file Contact sales EPC 8k 8380i500 to 848 V280 to 600 V (optional from 0 V)8.0 kW 800V | 380V | isolated | bidirectionalPeak power [kW]: 10 kWHigh side Voltage [Vdc]: 500 to 848 VHigh side current (max): 11 A (15 A)Low side Voltage [Vdc]: 280 to 600 V (optional from 0 V)Low side current (max): 21 A (33 A)Size: Size 3 ?Weight [kg]: 8.90 kg Datasheet Related downloads 3D file Contact sales Buck-boost bidirectional DC/DC converters Offer a wide voltage range, making them compatible with various input and output voltage levels for multiple industrial applications. High efficiency in both directions. High side voltage range (operation)Low side voltage range (operation) (2)Nominal power [kW] EPC 50A 1400200 to 1400 V0 to 1348 V57 kW 1400V | 1348V | buck boost | bidirectionalAvailability: In productionMax. efficiency: 99.54 %Size: 247.5 x 87.9 x 479.3 mmWeight [kg]: 9.75 kgEnclosure: 2U Half rack Datasheet Related downloads 3D file Contact sales EPC 50A 084850 to 848 V0 to 798 V40 kW 848V | 798V | buck boost | bidirectionalAvailability: Under requestMax. efficiency: 99.2 %Size: 247.5 x 87.9 x 479.3 mmWeight [kg]: 9.89 kgEnclosure: 2U Half rack Datasheet Related downloads 3D file Contact sales EPC 50A 046050 to 460 V0 to 410 V20 kW 460V | 410V | buck boost | bidirectionalAvailability: Under requestMax. efficiency: 98.1 %Size: 247.5 x 87.9 x 479.3 mmWeight [kg]: 9.34 kgEnclosure: 2U Half rack Datasheet Related downloads 3D file Contact sales Bidirectional DC/DC converters FAQs Where are the DC/DC converters manufactured? All our DC/DC converters are manufactured at our factory in Zaragoza (Spain).We take care of all the processes and the quality of the materials used. Is it posible to parallelize converters to get more power? Yes. When parallelizing, how do the converters communicate with each other? Via CAN BUS 2.0 Should I choose isolated or non-isolated (buck-boost) architecture? We have both technologies. Depending on your needs and application one might be better than the other.Ask us, and our engineers will study your specific case. What are the main applications? Heavy load AGVs or AMRs, Marine, Enery Storage (BESS), Cranes, Elevators/Lifts (Epic Power Lifts Division), DC microgrids, Data centers, Electromobility, etc. What are the average delivery times? Our average delivery time is 6 weeks, but we usually have some products in stock in our warehouse.Ask us to know the availability. What is the efficiency level of the Epic power’s bidirectional DC/DC converters? Up to 99.54% (in both sides) Is it easy to switch between different control modes? Yes. Our converters have memory banks available that you can pre-configure to switch between them easily. How many control modes do the bidirectional DC/DC converter have? The main default control modes are 6: Current Control Mode (xSCC), Power Control Mode (xSPC), Voltage Control Mode (xSVC), Photovoltaic Mode (xSPV), Energy Recovery Mode (xSER) and Voltage Droop Control Mode (xSVDC).We also have all necessary control modes to fulfill the requirements of your application. Do you need a custom converter? If you cannot find a solution that suits your needs, request a quote for a custom converter. If you prefer you can use our Converter Configurator to request a quote easily. Download it here! Request a quote Name* Please leave this field empty. Surname* Email* Company* Vmin low side [V]* Vmax low side [V]* Vmin high side [V]* Vmax high side [V]* Power [kW]* Control StandaloneCANOther (specify) Work cycle 0-20%20%-40%40%-60%60%-80%80%-100% Remarks Attached file: * Required fields I confirm that I have read and accept the privacy policy / Confirmo que he leído y acepto la política de privacidad Industries LiftRelated Case StudySolar powered elevators in a residential building: A case study.AGVs – ShuttlesRelated Case StudyTransfer carts (AGVs) for heavy loads. A case study.DC MicrogridRelated Case StudyOff-grid hydrogen generationEESMarineRelated Case StudyCarnegie Clean Energy MoorPower generates clean energy from ocean wavesCranesRelated Case StudyCranesElectro MobilityRelated Case StudyCranes
